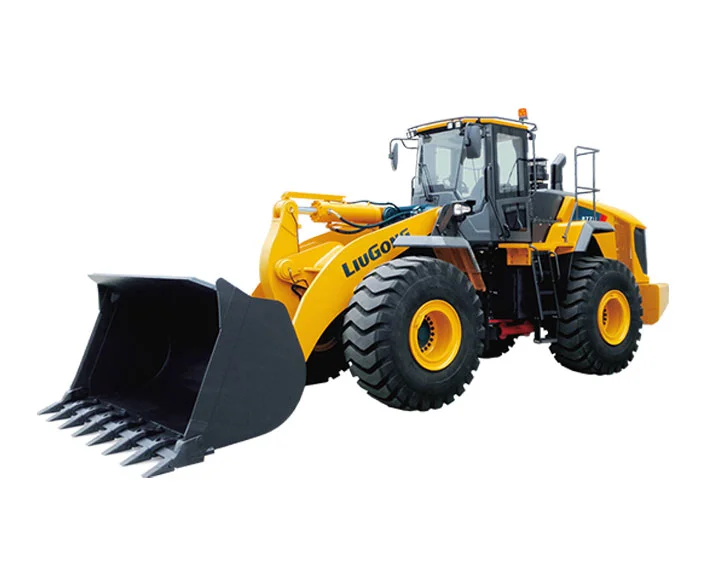

877H WHEEL LOADER

Description

877H
SPECIFICATIONS

Operating weight23974 kg
Standard bucket4.2 m³
Maximum gross power220 kW (299 hp) @ 1600 rpm
Maximum net power210 kW (285 hp) @ 1600 rpm
Rated load7000 kg
Total cycle time10.3 s
Tipping load-full turn16765 kg
Bucket breakout force2003 kN
Dump clearance, full height discharge3151 mm
Dump reach, full height discharge1309 mm
ModelCummins 6LTAA8.9
EmissionsEPA Tier 2 / EU Stage II
Cooling systemCharge air cooling
Length with bucket down9150 mm
Width over tires2970 mm
Cab height3580 mm
Turning radius, outside of tire6625 mm
Bucket capacity3.5-7.0 m³
General Purpose4.2 m³
Light material5.2, 6.0, 7.0 m³
Heavy-rock3.5 m³
