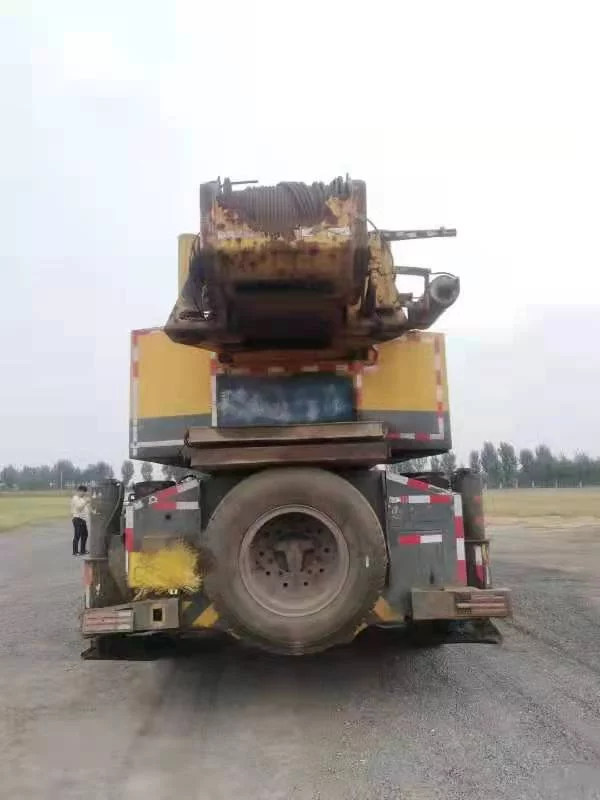

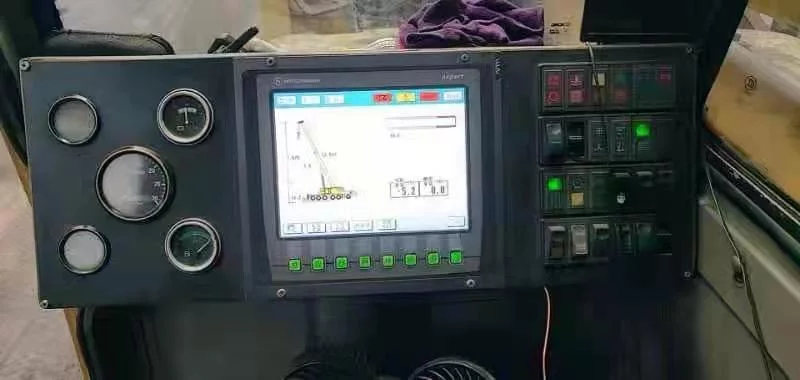

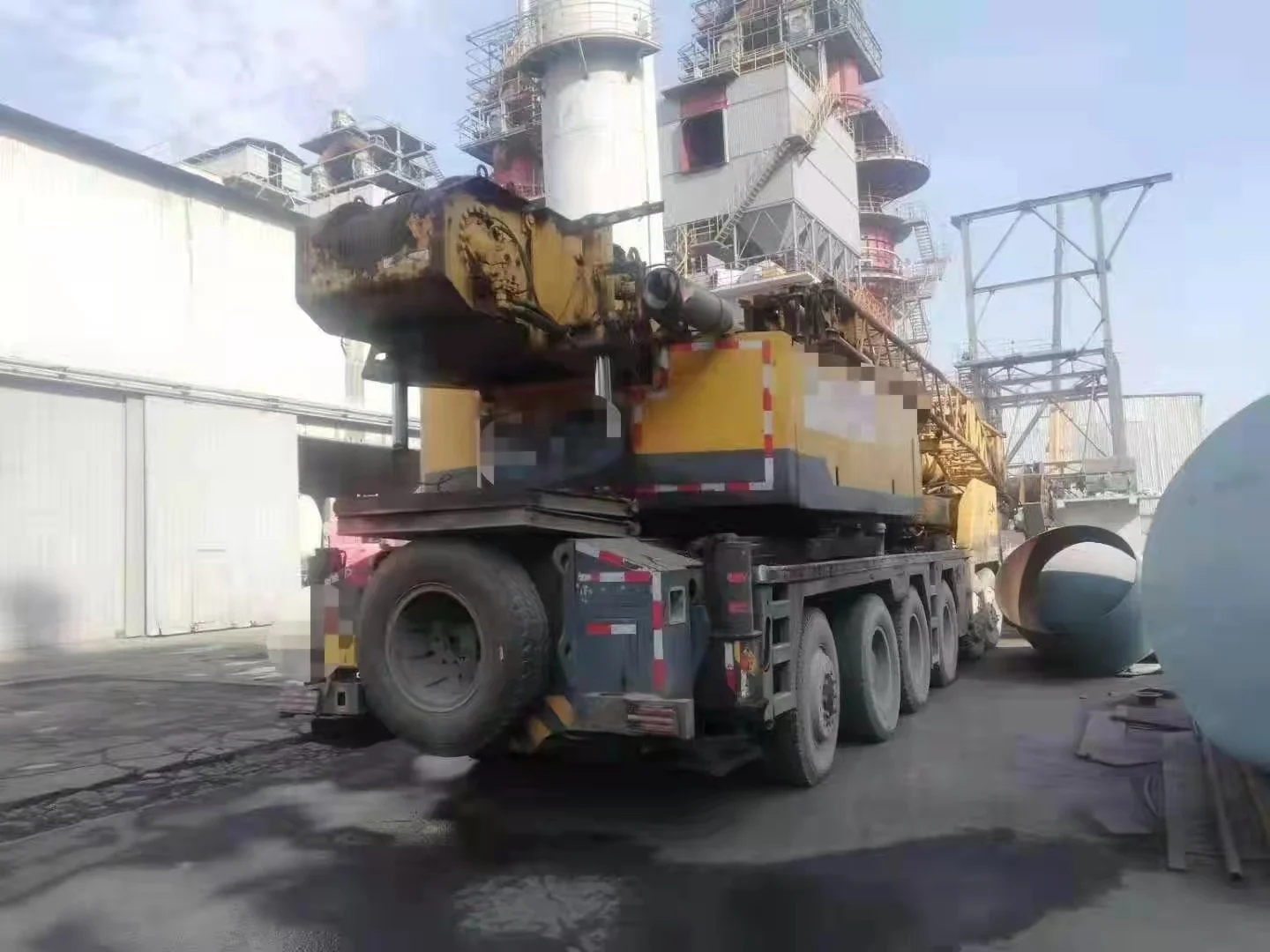

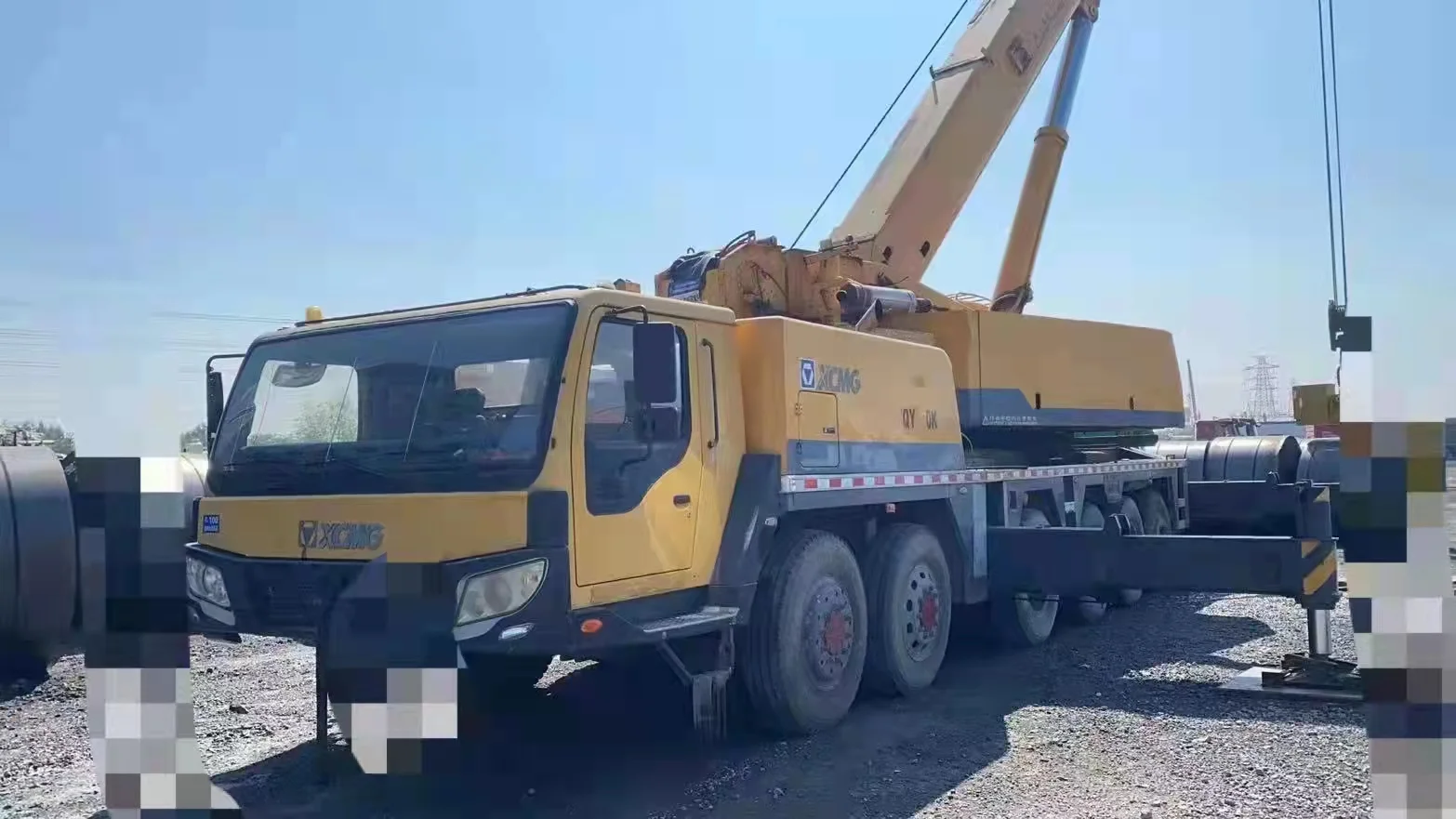

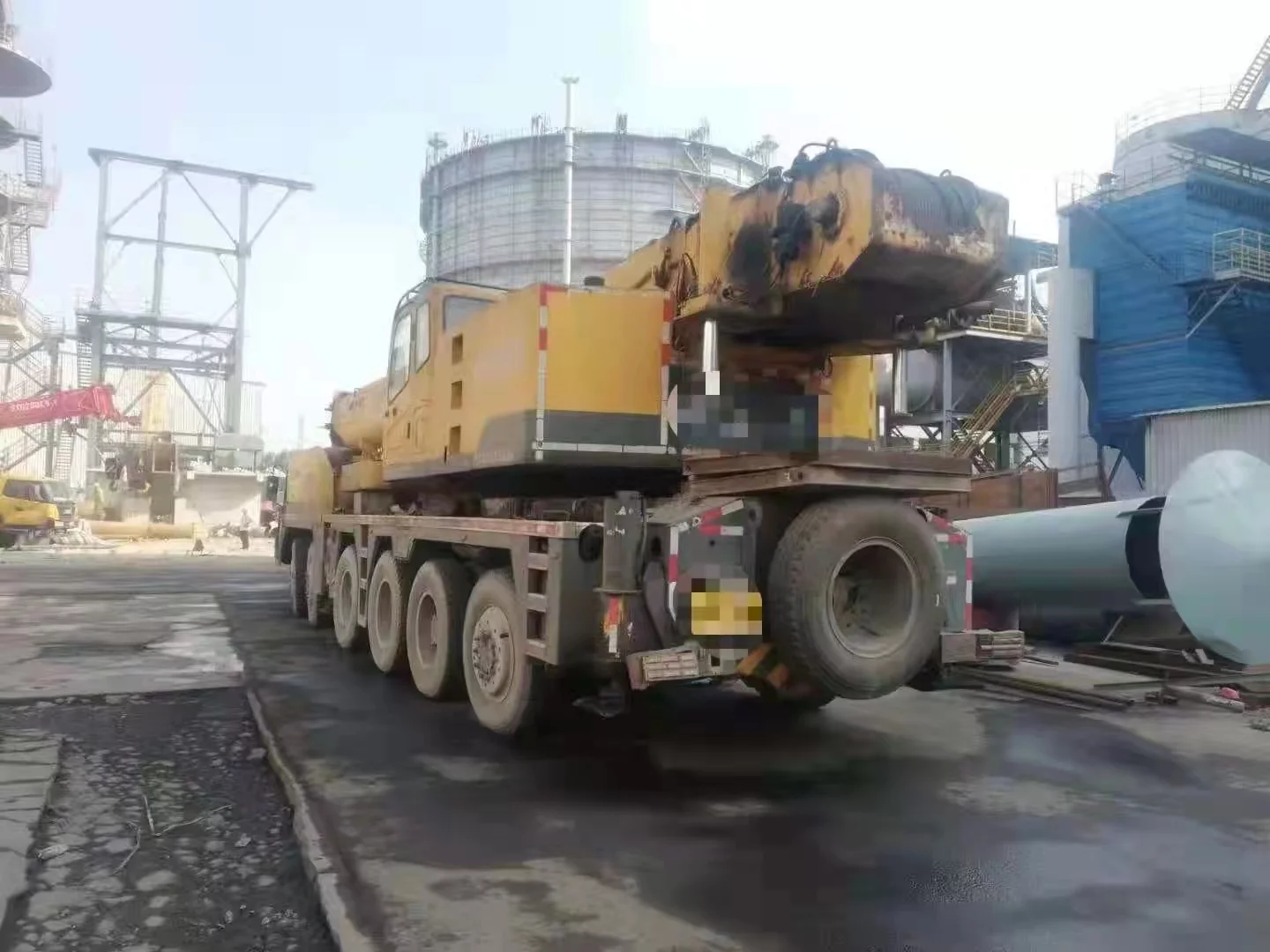

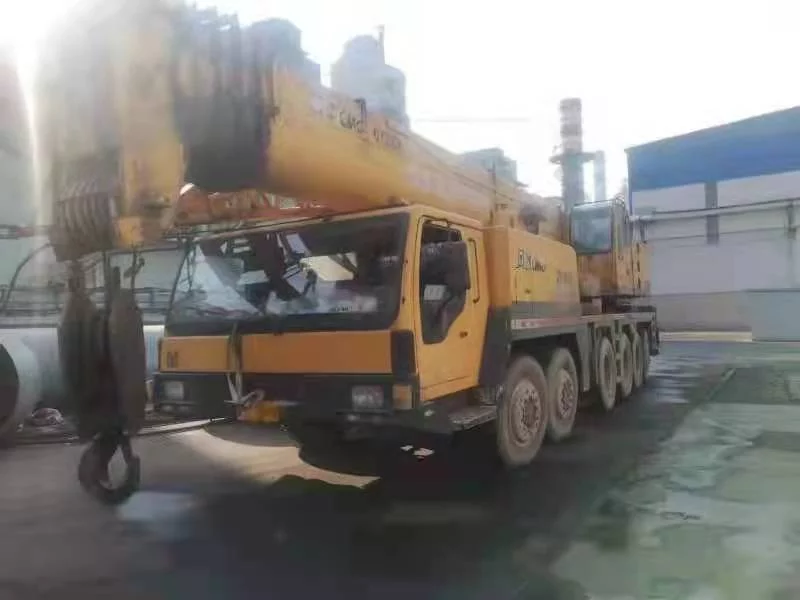

Description
Main specifications:
| Dimension | Unit | QY100K |
| Overall length, width, height | mm | 15600×3000×3850 |
| Wheel base | mm | 1420+2420+1800+1420+1505 |
| Weight | ||
| Total weight in travel | kg | 54900 |
| Axle load | ||
| Axle 1 | kg | 750 |
| Axle 2 | kg | 7500 |
| Axle 3 | kg | 8300 |
| Axle 4 | kg | 12000 |
| Axle 5 | kg | 12000 |
| Axle 6 | kg | 7600 |
| Power of engine | ||
| Engine rated power | kW/(r/min) | 360/1800 |
| Engine rated torque | N.m/(r/min) | 2200/1300 |
| Engine rated speed | r/min | 1800 |
| Min. ground clearance | mm | 310 |
| Specifications in Travel | ||
| Approach angle | ° | 20 |
| Departure angle | ° | 14 |
| Braking distance (at 30km/h) | m | ≤10 |
| Max. grade ability | % | 40 |
| Min. turning diameter | m | 24 |
| Fuel consumption for 100km | L | 70 |
| Main performance | ||
| Max. rated total lifting capacity | m | 100 |
| Min. rated working radius | 3 | |
| Turning radius at turntable tail | ||
| Counterweight | mm | 4200 |
| Aux. winch | mm | 4590 |
| Max. lifting torque | 3450 | |
| Base boom | kN.m | 3450(4m×88t) |
| Fully extended boom | kN.m | 1950(24m×7.1t) |
| Fully extended boom＋ jib | kN.m | 1230(19.2m×6t) |
| Outrigger span (full extension) | ||
| Longitudinal | m | 7.56 |
| Lateral | m | 7.6 |
| Lifhting Height | ||
| Base boom | m | 13.5 |
| Fully extended boom | m | 50.9 |
| Fully extended boom＋ jib | m | 70.4 |
| Boom length | m | 13.5 |
| Fully extended boom | m | 51 |
| Fully extended boom＋ jib | m | 51+18.1+4 |
| Working speed | ||
| Jib setting angle | ° | 0、15、30 |
| Boom luffing time | s | 75 |
| Boom | ||
| Boom telescoping time | ||
| Full extension | s | 160 |
| Max. swing speed | r/min | 2 |
| Outrigger extension/retraction time | ||
| Outrigger beam in extension/retraction | s | 25/15 |
| Outrigger jack in extension/retraction | s | 45/25 |
| Lifting speed (single rope, layer 4) | ||
| Main winch | m/min | 105 |
| Aux. winch | m/min | 104 |
