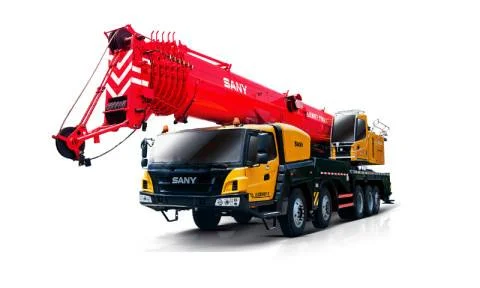

SANY STC1000S

Max Lifting Capacity 100 ton
Boom Length 56 m
Brand SANY
Max Height 77.5 m
Crane Type Truck Crane
Model STC1000S

Description

Specifications of SANY STC1000S 100 ton Truck Crane
Max Lifting Capacity 100 ton
Boom Length 56 m
Brand SANY
Max Height 77.5 m
Crane Type Truck Crane
Model STC1000S
Max Travel Speed 80 km/hr
Working Speed – Full extension/retraction time of boom 480 s / 500 s
Working Speed – Full lifting/descending time of boom 60 s / 80 s
Working Speed – Slewing speed 0 r/min ~1.6 r/min
Dimensions – Overall height 4000 mm
Dimensions – Axle distance – Axle 1,2 2080 mm
Dimensions – Axle distance – Axle 2,3 3925 mm
Dimensions – Axle distance – Axle 3,4 1500 mm
Dimensions – Wheel distance – Axle 1,2 2335 mm
Dimensions – Wheel distance – Axle 3,4 2322 mm
Weight – Axle load – Axle 1,2 (front axle) 22000 kg
Weight – Axle load – Axle 3,4 (rear axle) 24000 kg
Power – Engine ISLe375 30
Power – Rated power 275kW/2100rpm
Power – Rated torque 1550N·m / (1100-1400)rpm
Power – Emission standard GB III
Traveling – Min. stable travelling speed 1.89 Km/hr
Traveling – Turning radius – Min. turning radius 10.5 m
Traveling – Min. ground clearance 320 mm
Traveling – Approach angel 21 º
Traveling – Departure angel 19 º
Traveling – Braking distance(30km/hr) ≤10 m
Traveling – Max. gradeability 40 %
Traveling – Fuel consumption per 100 km ≤50 L
Main Performe Parameter – Min. working radius 3 m
Main Performe Parameter – Max. lifting torque – Basic boom 3300 kN.m
Main Performe Parameter – Max. lifting torque – Fully-extended boom 1824 kN.m
Main Performe Parameter – Outrigger span 7.8 m x 7.91 m
Main Performe Parameter – Lifting height – Basic boom 12.26 m
Main Performe Parameter – Boom length – Basic boom 12.26 m
Main Performe Parameter – Jib offset 0º, 15º, 30º
Working Speed – Max. single rope lifting speed of main winch (no load) 123 m/min
Working Speed – Max. single rope lifting speed of auxiliray winch (no load) 123 m/min
Working Speed – Full extension/retraction time of horizontal outrigger 25 s /15 s
Working Speed – Full lifting/descending time of vertical outrigger 40 s / 35 s
Dimensions – Overall length 14000 mm
Dimensions – Overall width 2800 mm
Weight – Overall weight 46000 kg
