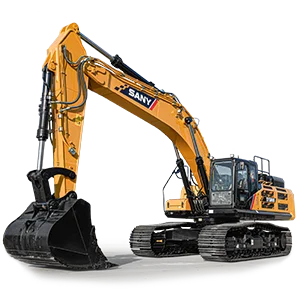

SY500H

Engine  CUMMINS QSX12
Rated power  298 kW / 2 100 rpm
Bucket capacity  2.2 m3
Operating mass  52 500 kg

Categories: ,

Description

TECHNICAL SPECIFICATIONS

DELIVERS HIGH PERFORMANCE

Cost-effectiveness is an easy calculation – maximum productivity at minimal cost. In this way, the SY500H is a real maths genius. It impresses with its efficient operation, in other words, its high performance and low fuel consumption. Durability and low investment costs. Availability and fewer maintenance requirements.

DIMENSIONS
Operating mass 52 500 kg
Standard bucket capacity 2,2
Transport length 12 103 mm
Transport width 3 596 mm
Height over cabin/ROPS 3 874 mm
ENGINE
Rated power 298 kW 2 100 rpm
WORKING AREA
Max. digging depth 7 705 mm
Max. digging reach 10 929 mm
Min. swing radius 5 216 mm
Bucket digging force ISO 253 kN
Arm digging force ISO 227 kN
HYDRAULIC SYSTEM
Max. oilflow 2 x360 l/min
