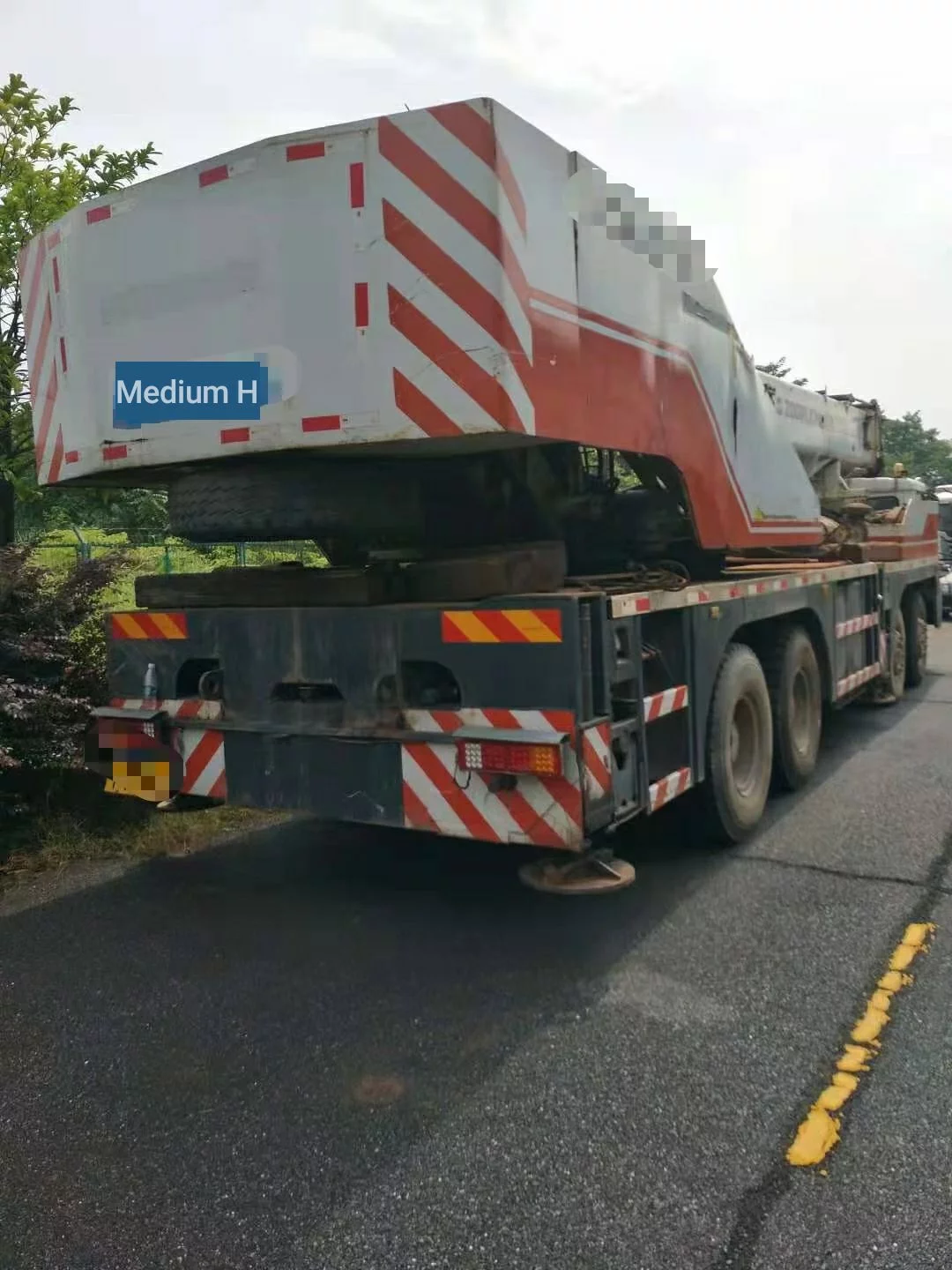

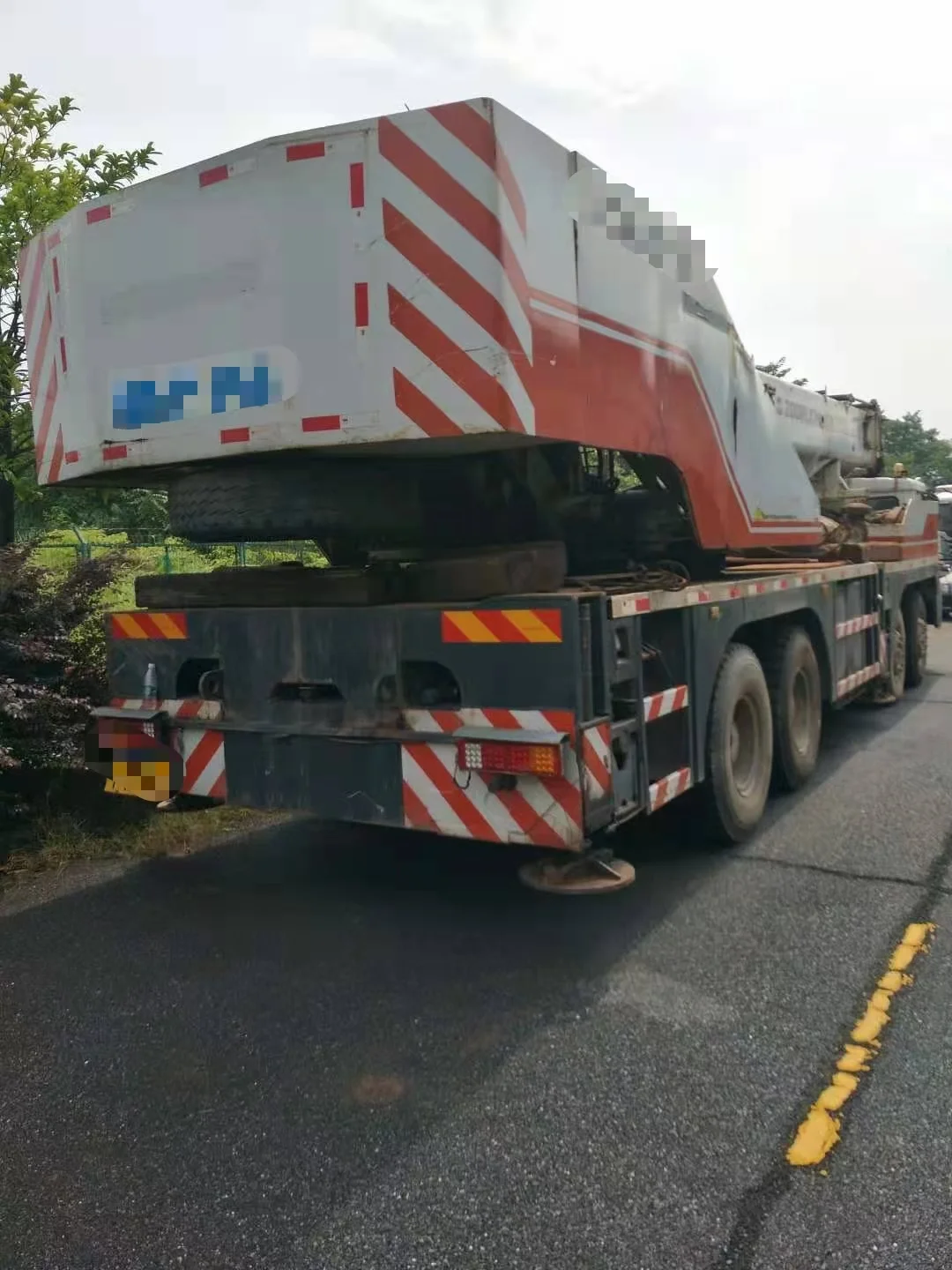

Zoomlion QY65H

   Make                                           ZOOMLION

   Model                                         QY65H

   Condition                                  used
Boom Length
41.5 to 56.5 Meter  with jib
Max Vehicle Speed
60 Kmph
Total Gross Vehicle Weight
Upto45000 Kg
Load Capacity
65 Ton
Categories: ,

Description

 Technical specifications
# Engine model Engine displacement Engine power Engine manufacturer
1 WP10.375 9726 cc 9.7 L 594 cu in 276 kW 376 hp Weichai Power Co., Ltd.
Performance
Environmental standard National II / Euro 2
Maximum speed 71 km/h 45 mph
Capacity
Max. rated hoisting capacity 65000 kg 65 t 143,000 lbs
Weights and Ground pressure
Curb weight 44870 kg 44.9 t 98,921 lbs
Gross vehicle weight rating 45000 kg 45 t 99,000 lbs
Axle load distribution 9500 kg / 9500 kg / 26000 kg  (tandem axle)


9.5 t / 9.5 t / 26 t  (tandem axle)


20,900 lbs / 20,900 lbs / 57,000 lbs  (tandem axle)

Dimensions
Overall length 13890 mm / 14090 mm 45′7″ / 46′3″
Overall width 2750 mm 9′1″
Overall height 3650 mm 12′0″
Undercarriage and Suspension
Number of axles 4
Wheelbase 1450+4200+1350 mm 4′10″+13′10″+4′6″
Front track 2350 mm / 2350 mm 7′9″ / 7′9″
Rear track 2055 mm / 2055 mm 6′9″ / 6′9″
Front overhang 2565 mm 8′5″
Rear overhang 2095 mm 6′11″
Angle of approach 18.5°
Angle of departure 10.6°
Leaf springs 12 / 12 / 10
Tyres and Wheels
Number of tyres 12
Tyres dimension 12.00R24/12.00-20
Miscellaneous
Seating capacity 2
Steering control steering wheel
