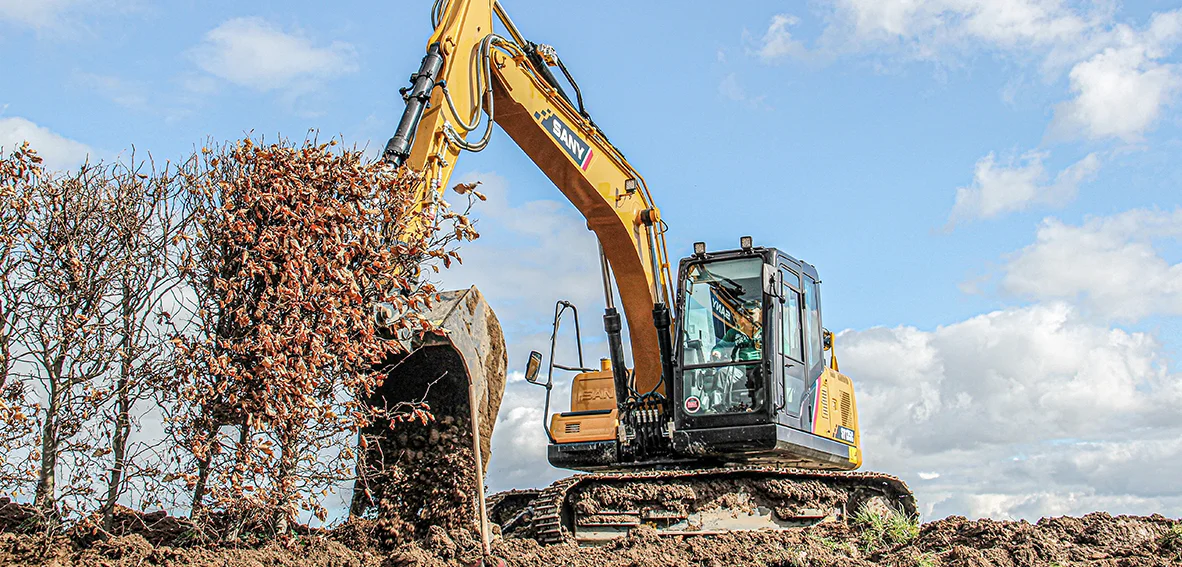

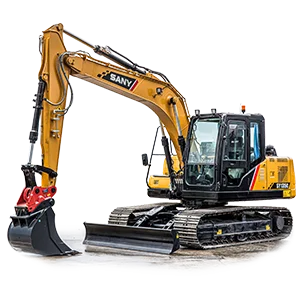

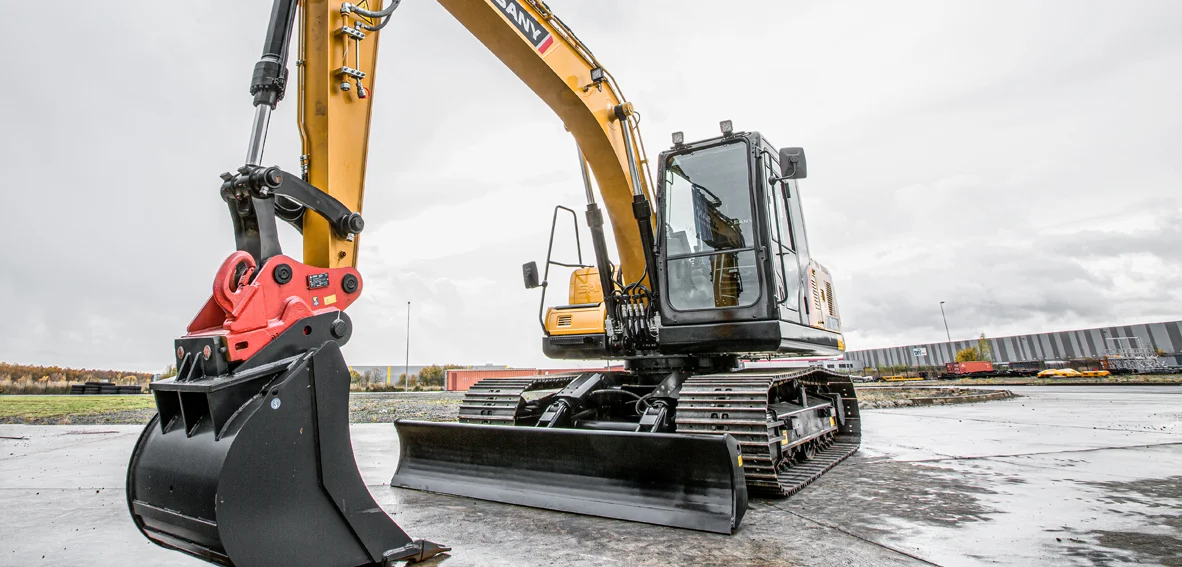

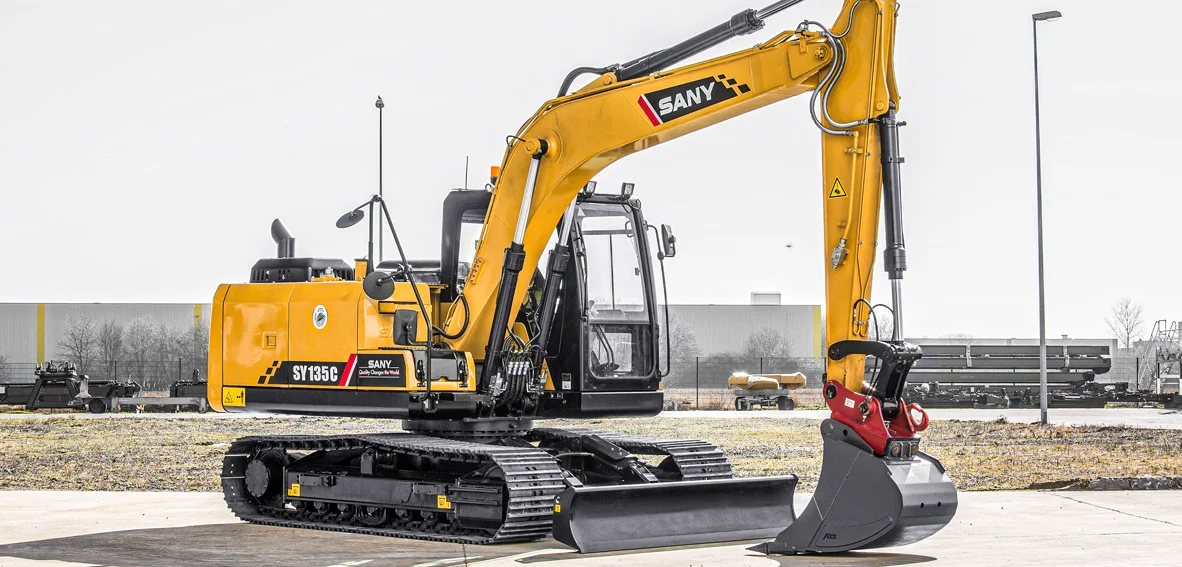

SY135C

Engine  ISUZU 4JJ1X
Rated power  78.5 kW / 2 000 rpm
Bucket capacity  0.6 m3
Operating mass  15 100 kg

Categories: ,

Description

TECHNICAL SPECIFICATIONS

PERFORMANCE YOU CAN RELY ON

The SY135C resoundingly proves that the performance of a compact excavator is not necessarily determined by bulky size. Weighing a total of almost 15 tonnes, it offers the optimum ratio of power to manoeuvrability. In addition, the robust, wide heavy-duty undercarriage and the robust dozer blade provide a high level of stability. This allows it to optimally apply its power – for a comprehensive range of applications anywhere where larger machines have to fit.

DIMENSIONS
Operating mass 14 870 kg kg
Standard bucket capacity 0.6
Transport length 7 700 mm
Transport width 2 590 mm
Height over cabin/ROPS 2 820 mm
ENGINE
Rated power 78.5 kW 2 000 rpm
WORKING AREA
Max. digging depth 5 500 mm
Max. digging reach 8 290 mm
Min. swing radius 2 500 mm
Bucket digging force ISO 103 kN
Arm digging force ISO 67 kN
HYDRAULIC SYSTEM
Max. oilflow 2×110 l/min
