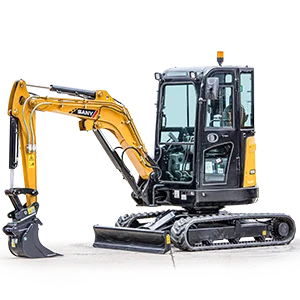

SY26U

Engine  Yanmar 3TNV80F
Rated power  15.2 kW / 2 500 rpm
Bucket capacity  0.06 m3
Operating mass  2 760 kg

Categories: ,

Description

TECHNICAL SPECIFICATIONS

POWERFUL AND MOBILE – THE SY26U IS WELL-EQUIPPED BY ITS VERY NATURE!

It has everything it needs to become an indispensable aid. Its impressive properties include not only its power and endurance, but also the precise response characteristics of all the components thanks to the sophisticated hydraulic system. Outstanding performance for a fair price: That‘s what we call cost-effective.

DIMENSIONS
Operating mass 2 760 kg
Standard bucket capacity 0.06
Transport length 4 285 mm
Transport width 1 550 mm
Height over cabin/ROPS 2 430 mm
ENGINE
Rated power 15.2 kW 2 500 rpm
WORKING AREA
Max. digging depth 2 820 mm
Max. digging reach 4 850 mm
Min. swing radius 2 110 mm
Bucket digging force ISO 27.9 kN
Arm digging force ISO 14.2 kN
HYDRAULIC SYSTEM
Max. oilflow 81 l/min
