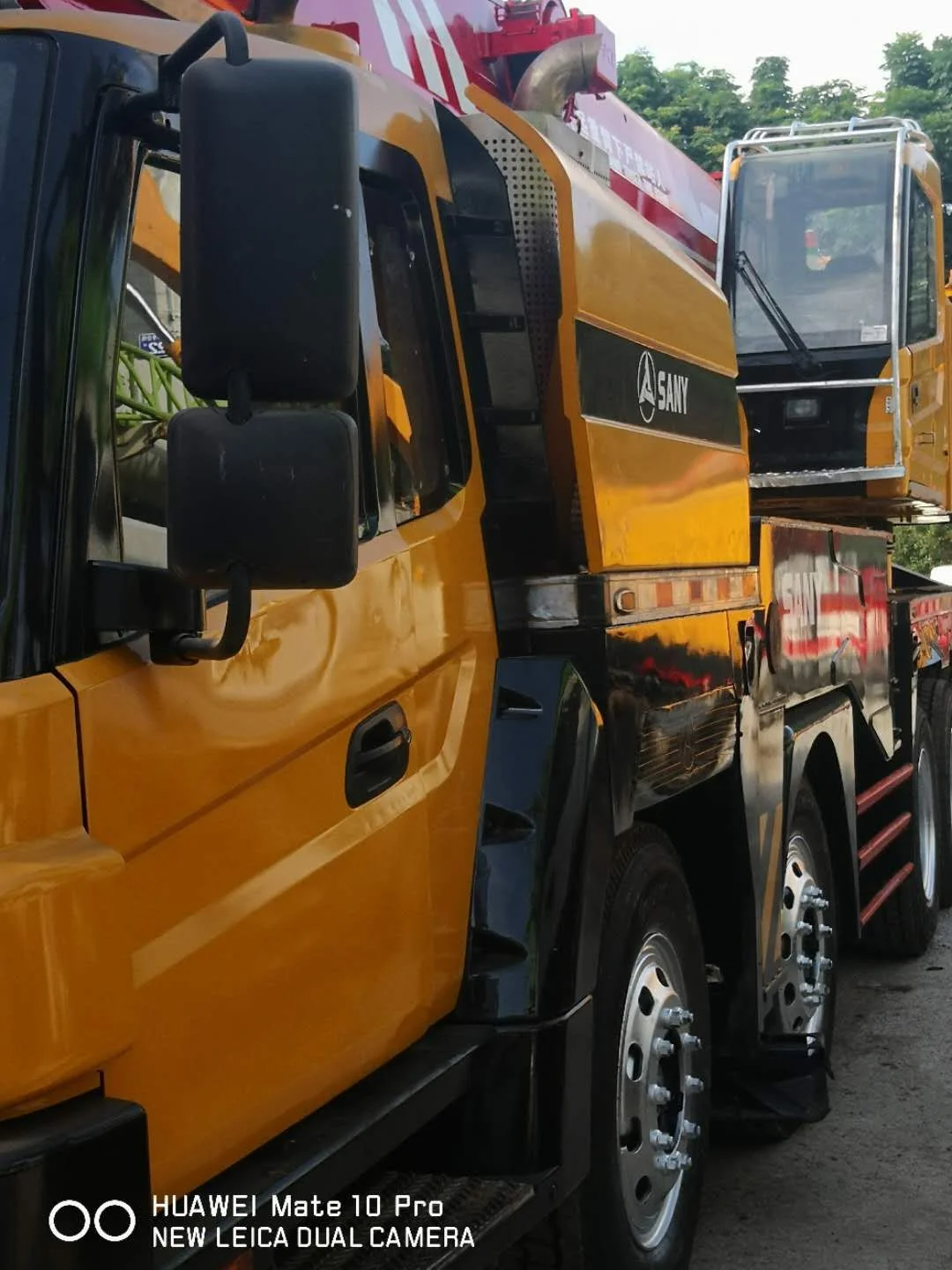

SANY STC1600C

Max Lifting Capacity 160 ton
Boom Length 62 m
Brand SANY
Max Height 98 m
Crane Type Truck Crane
Model STC1600
Categories: ,

Description

Specifications of SANY STC1600 160 ton Truck Crane
Max Lifting Capacity 160 ton
Boom Length 62 m
Brand SANY
Max Height 98 m
Crane Type Truck Crane
Model STC1600
Max Travel Speed 80 km/hr
Traveling – Turning radius – Min.turning radius 11.5 m
Traveling – Turning radius – Min.turning radius of boom head 14.4 m
Traveling – Wheel formula 10 x 6 x 6
Traveling – approach angle 19 °
Traveling – Departure angle 15 °
Traveling – Max.gradeability 40%
Working speed – Full extension/retraction time of boom 500/s
Working speed – Full lifting/descending time of boom 60/s
Working speed – Slewing speed 1.6 r/min
Dimensions – Overall height 4000 mm
Dimensions – Axle distance – Axle-3,4 1450 mm
Traveling – Min.ground clearance 310 mm
Main Performance Data – Temperature range – 0.5 ℃ ~ + 82 ℃
Main Performance Data – Min.rated range 3 m
Main Performance Data – Tail slewing radius of swingtable 4.91 m
Main Performance Data – Boom section 6
Main Performance Data – boom shape U-shaped
Main Performance Data – Max.lifting moment – Base boom 6000 kN·m
Main Performance Data – Max.lifting moment – Full-extend boom 2580 kN·m
Main Performance Data – Max.lifting moment – Full-extend boom+jib 1827kN·m
Main Performance Data – Jib offset 0 °, 20 °, 40 °
Working speed – Max.single rope lifting speed of main winch (no load) 135 m/min
Working speed – Max.single rope lifting speed of auxiliary winch (no load) 135 m/min
Dimensions – Axle distance – Axle-4,5 1500 mm
Main Performance Data – Boom length – Base boom 13.4 m
Air Condition – Air Condition in up cab Cooling/Heating
Air Condition – Air Condition in low cab Cooling/Heating
Weight – Axle load – 1,2 10000/10000 kg
Weight – Axle load – 3,4,5 13000/13000/9000 kg
Traveling – Fuel consumption per 100 km ≤ 78 L
Main Performance Data – Outrigger span (Longitudinal×Transversal) 7.8 x 8.0 m
Dimensions – Overall length 15319 mm
Dimensions – Overall width 3000 mm
Dimensions – Axle distance – Axle-1,2 2100 mm
Dimensions – Axle distance – Axle-2,3 3270 mm
Weight – Overall weight 55000 kg
