COMPACT PRODUCTIVITY

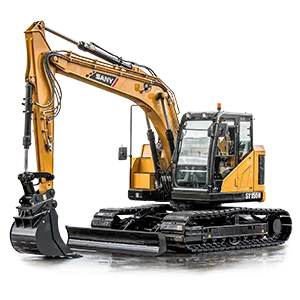

The SY155U short-tail-swing excavator shows what it‘s capable of, even in confined areas. The compact design with short slewing radius allows for powerful operation even in tight spaces. And thanks to its manoeuvrability, you can easily access areas not possible with other machines of its type.
| DIMENSIONS | ||||
| Operating mass | 16000 | kg | ||
| Standard bucket capacity | 0.6 | m³ | ||
| Transport length | 7300 | mm | ||
| Transport width | 2590 | mm | ||
| Height over cabin/ROPS | 3022 | mm | ||
| ENGINE | ||||
| Rated power | 78.5 | kW | 1900 | rpm |
| WORKING AREA | ||||
| Max. digging depth | 5468 | mm | ||
| Max. digging reach | 8338 | mm | ||
| Min. swing radius | 2086 | mm | ||
| Bucket digging force ISO | 103 | kN | ||
| Arm digging force ISO | 67 | kN | ||
| HYDRAULIC SYSTEM | ||||
| Max. oilflow | 2×110 | l/min |
