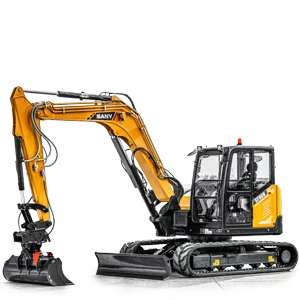

SY80U

Engine  YANMAR 4TNV98CT-VSY
Rated power  53.7 kW / 2 100 rpm
Bucket capacity  0.28 m3
Operating mass  8 800 kg

Categories: ,

Description

TECHNICAL SPECIFICATIONS

A TRUE WORKHORSE

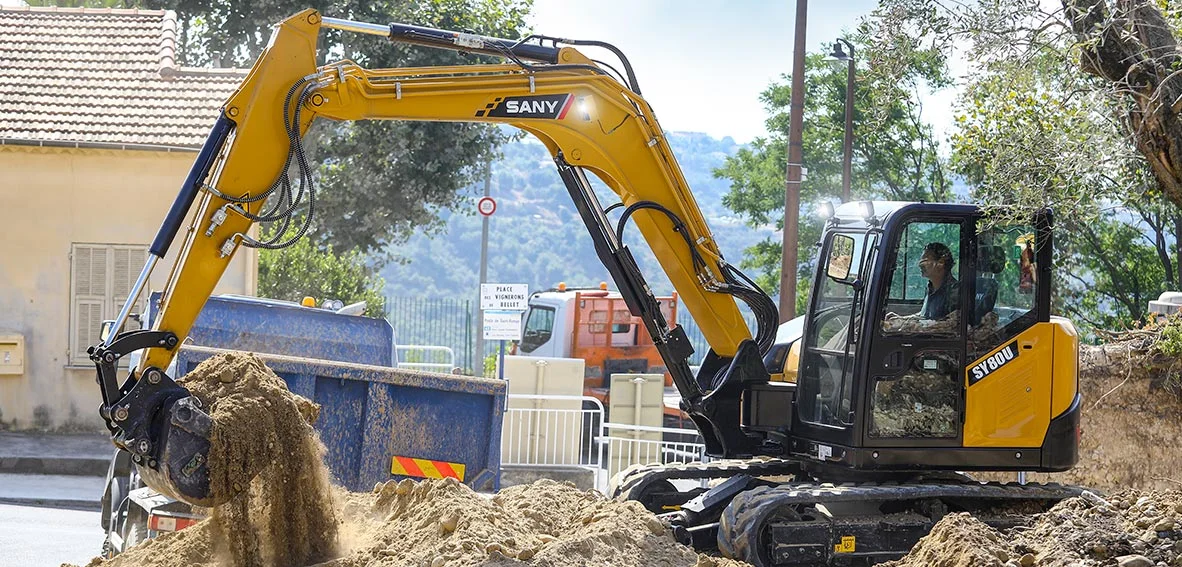

The SY80U short-tail-swing excavator is tailored to the requirements of tough everyday use on the construction site. It demonstrates its impressive versatility when digging, loading and crushing – and its agility is evident, thanks to its swivelling boom and the short tail concept. Aside from its compact design, it impresses with its first-class performance, its low fuel consumption and its
outstanding user comfort.

DIMENSIONS
Operating mass 8800 kg
Standard bucket capacity 0.28
Transport length 6500 mm
Transport width 2220 mm
Height over cabin/ROPS 2550 mm
ENGINE
Rated power 53.7 kW 2100 rpm
WORKING AREA
Max. digging depth 4535 mm
Max. digging reach 7290 mm
Min. swing radius 2435 mm
Bucket digging force ISO 72.7 kN
Arm digging force ISO 40.5 kN
HYDRAULIC SYSTEM
Max. oilflow 1×193.2L l/min
