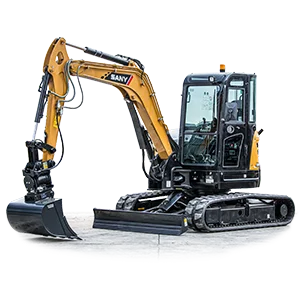

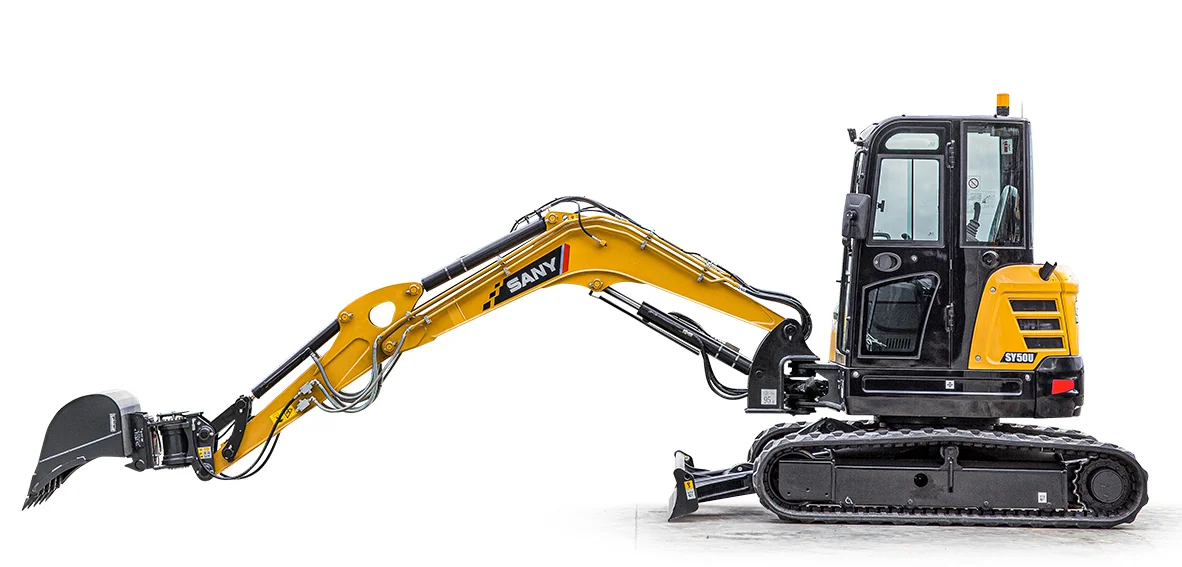

SY50U

Engine  Yanmar 4TNV88-PSY
Rated power  29.1 kW / 2 400 rpm
Bucket capacity  0.152 m3
Operating mass  5 300 kg

Categories: ,

Description

TECHNICAL SPECIFICATIONS

PERFECT COMBINATION OF COMPACTNESS + AND POWER

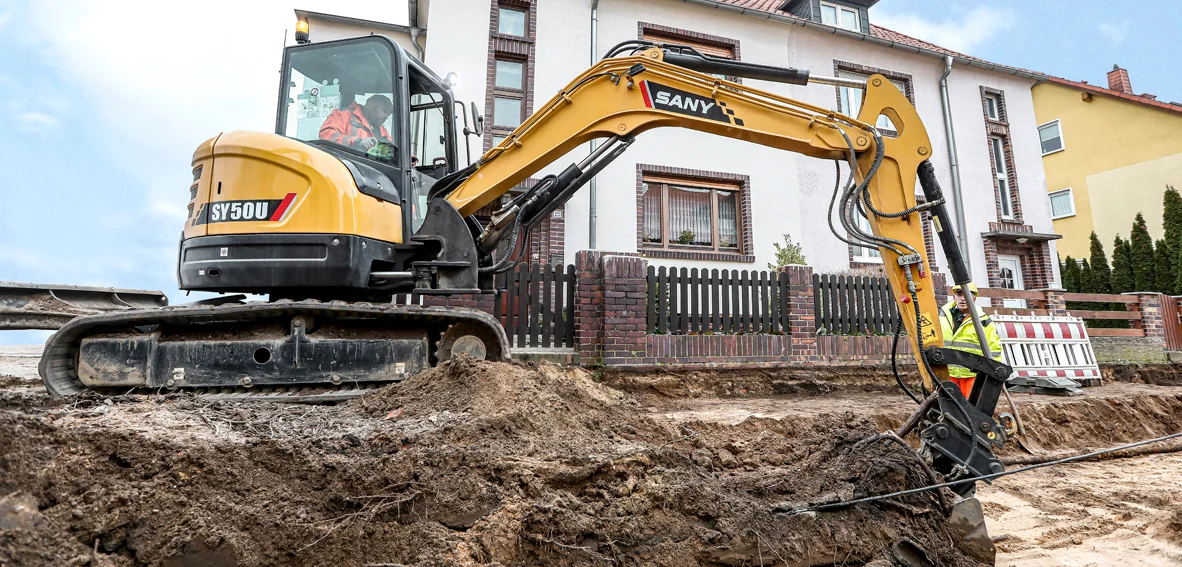

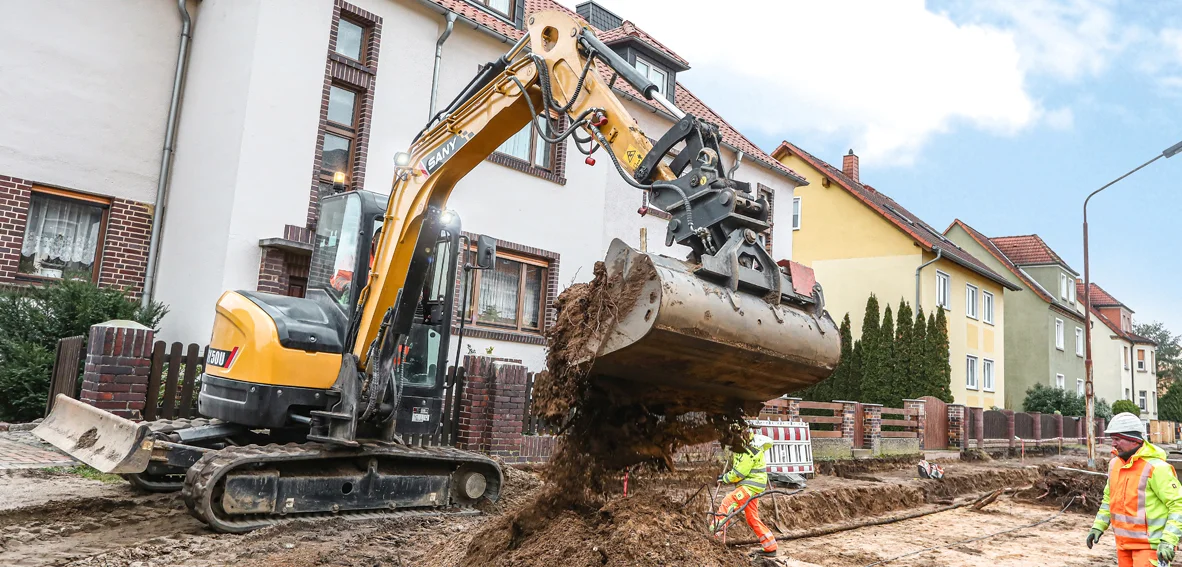

The SANY SY50U really is a powerful little machine. Its compact design means it is at home on urban construction sites, as well as anywhere with areas that are particularly small. Its power and versatility therefore ensure productivity.

DIMENSIONS
Operating mass 5 300 kg
Standard bucket capacity 0.152
Transport length 5 390 mm
Transport width 1 960 mm
Height over cabin/ROPS 2 630 mm
ENGINE
Rated power 29.1 kW 2 400 rpm
WORKING AREA
Max. digging depth 3 420 mm
Max. digging reach 5 880 mm
Min. swing radius 2 520 mm
Bucket digging force ISO 32.5 kN
Arm digging force ISO 22.9 kN
HYDRAULIC SYSTEM
Max. oilflow 138.6 l/min
