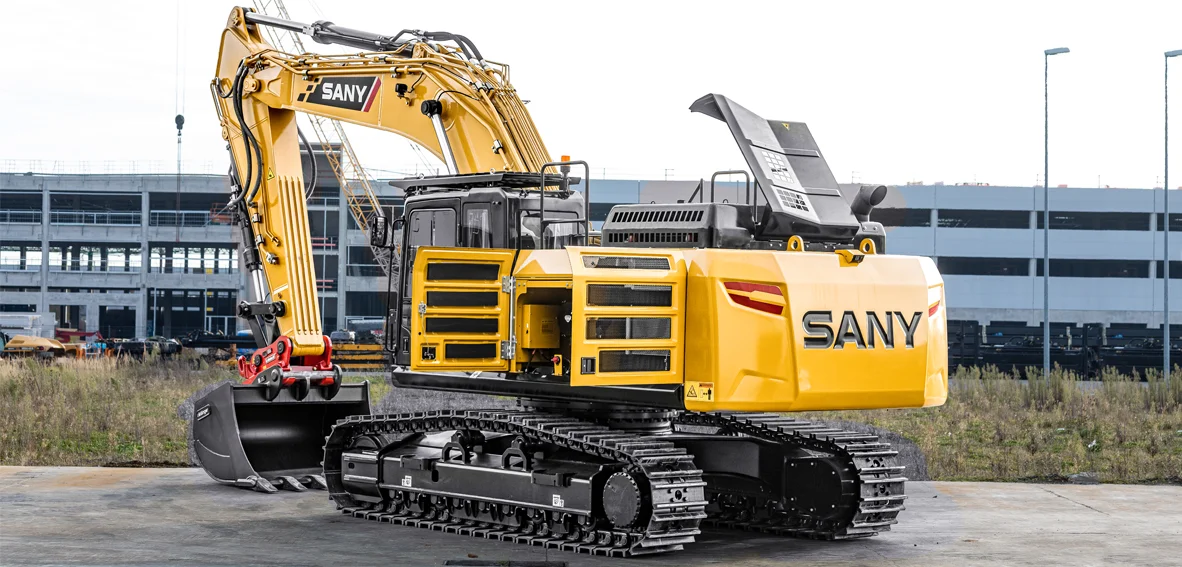

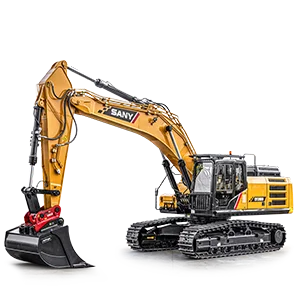

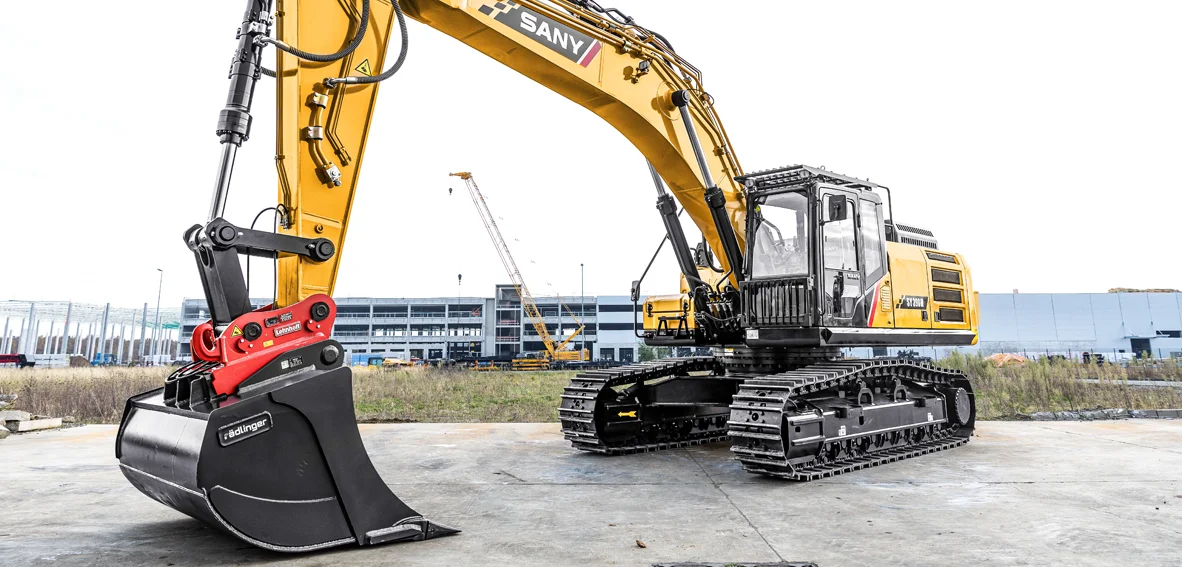

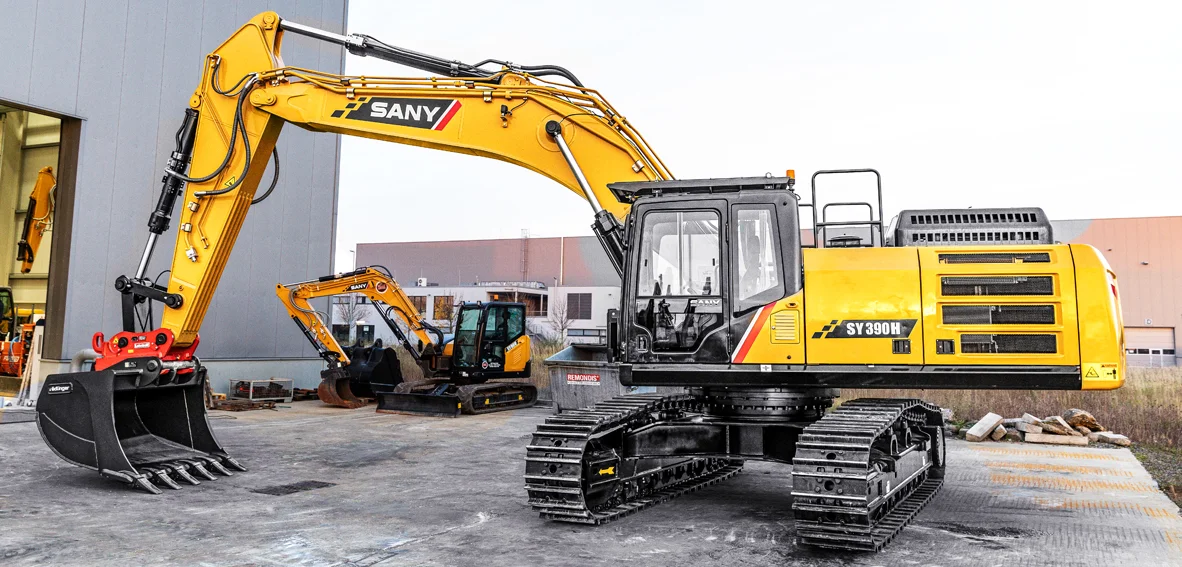

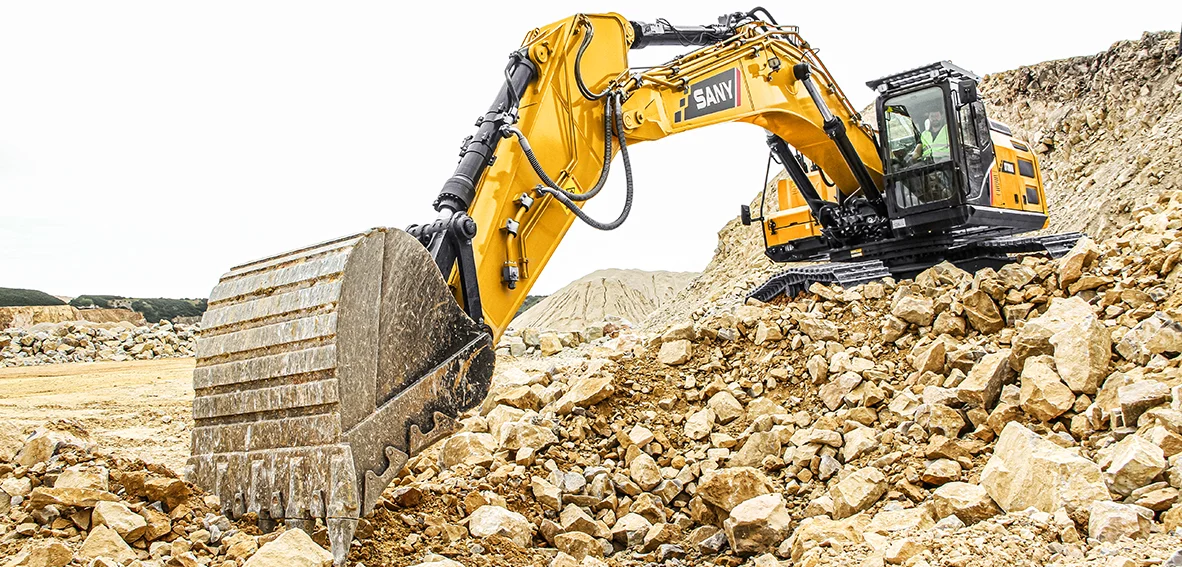

SY390H

Engine  CUMMINS L9-C
Rated power  252 kW / 2 100 rpm
Bucket capacity  1.9 m3
Operating mass  40 150 kg

Categories: ,

Description

TECHNICAL SPECIFICATIONS

FLEXIBLE POWERHOUSE

The SY390H makes it easy for you to work efficiently. And with as much flexibility as you‘ve always wanted. With the automatic switching of the hammer valve and the individually programmable attachment devices, even challenging attachment devices can be changed over quickly and easily. This makes operation more efficient and requires fewer compromises when changing tasks. A flexible powerhouse, the SY390H is a real hero at work, powering through a lot of work, wherever it is put to use.

DIMENSIONS
Operating mass 40 150 kg
Standard bucket capacity 1.9
Transport length 11 432 mm
Transport width 3 190 mm
Height over cabin/ROPS 3 783 mm
ENGINE
Rated power 252 kW 2 100 rpm
WORKING AREA
Max. digging depth 7 473 mm
Max. digging reach 11 022 mm
Min. swing radius 4 176 mm
Bucket digging force ISO 233 kN
Arm digging force ISO 184 kN
HYDRAULIC SYSTEM
Max. oilflow 2×352 l/min
