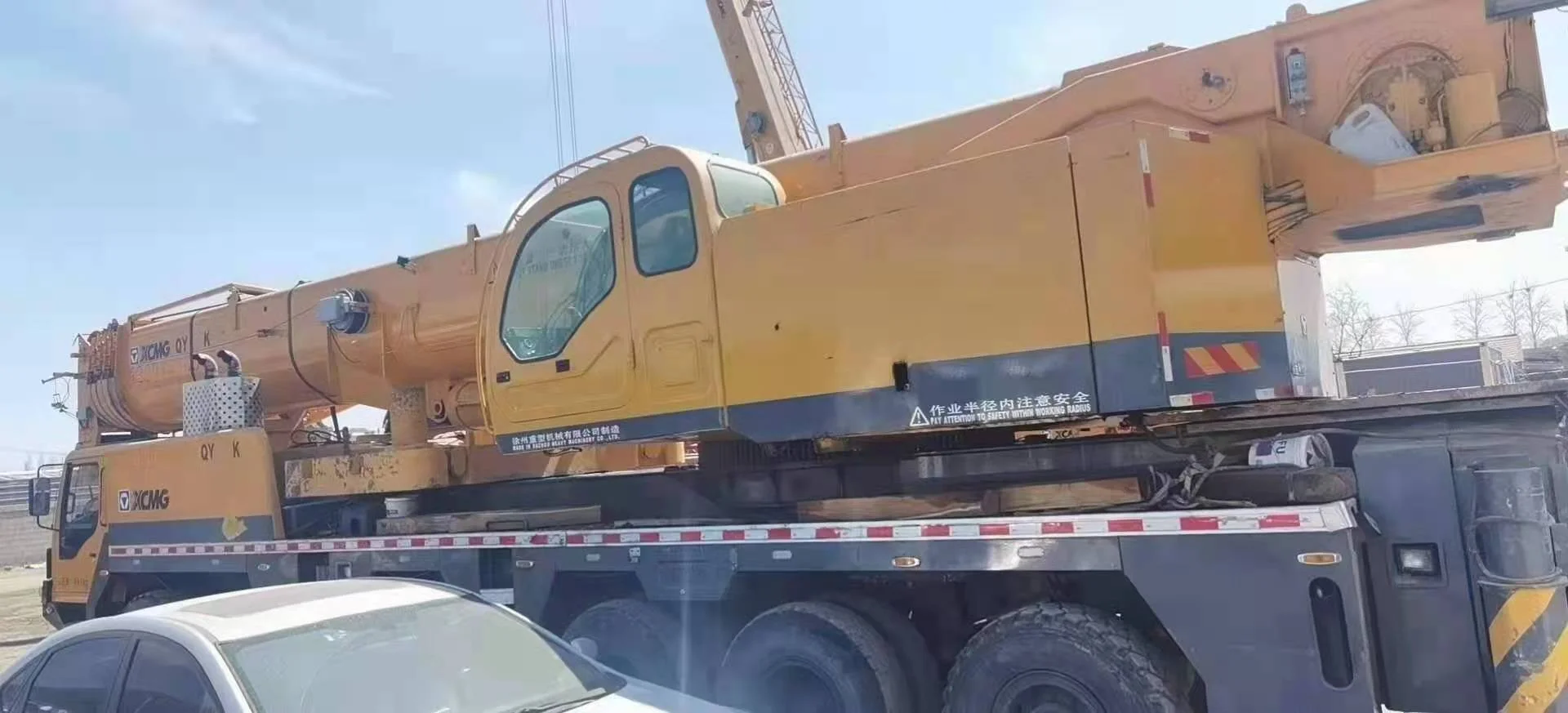

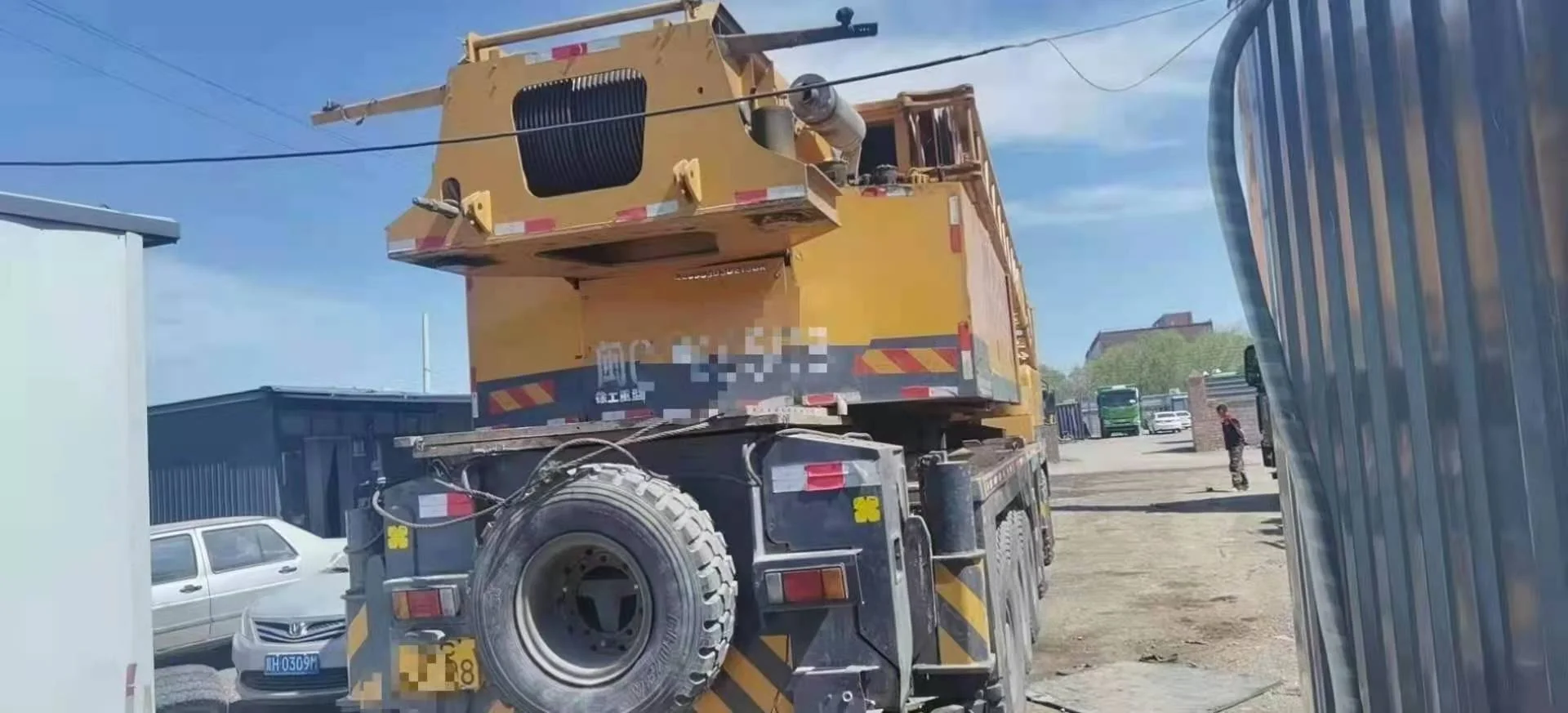

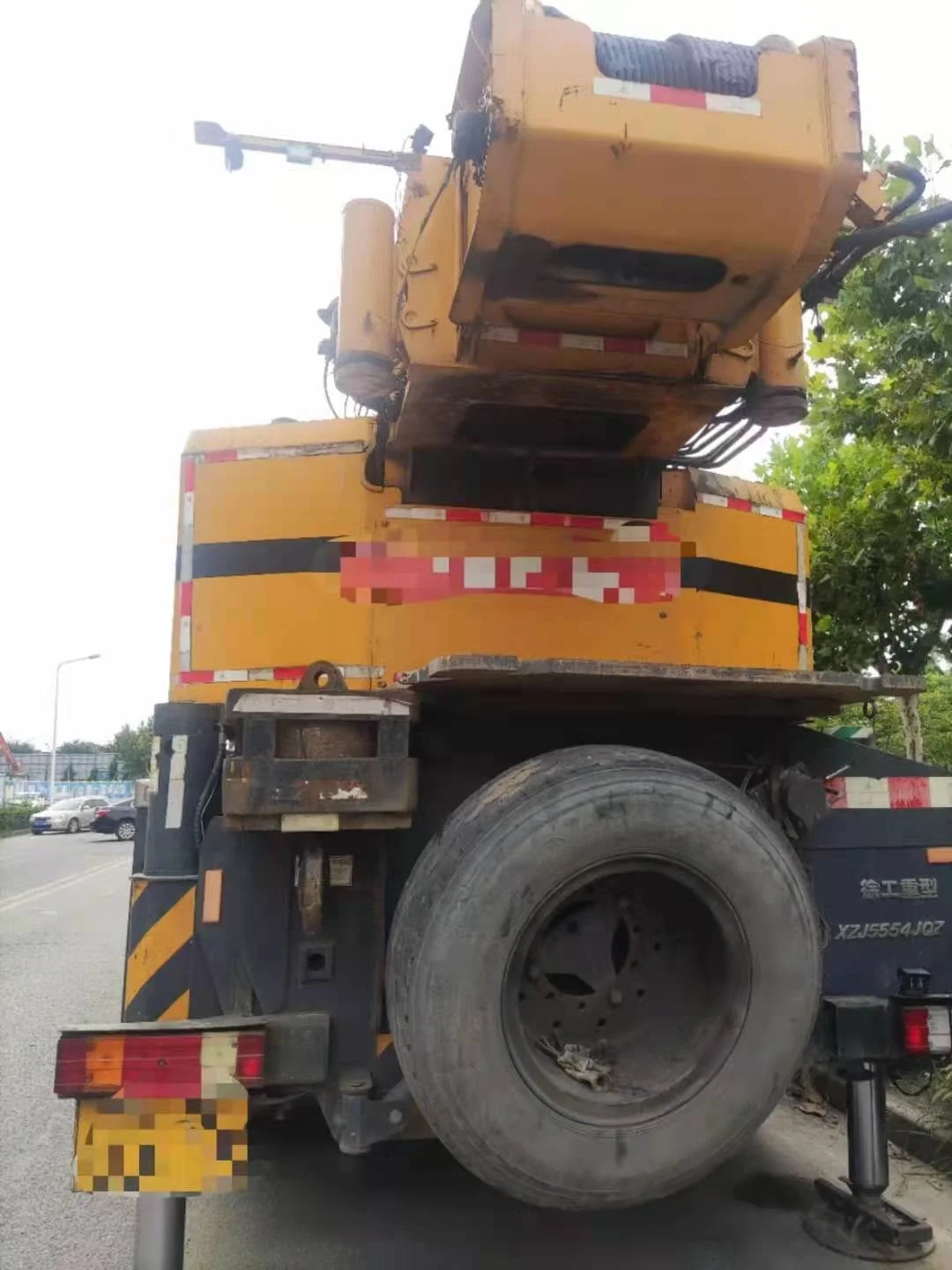

XCMG QAY220

  • Model Number:QAY220
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Max. Lifting Height:94.7m
  • Max. Lifting Load:220 ton
  • Rated Lifting Moment:6774kN·m
  • Rated Loading Capacity:220 ton

Description

Item Unit QAY220
Size parameters
Overall dimension mm 15850*3000*3970
Wheelbase mm 1650+3200+1650+2300+1650
Weight parameter
Total mass in driving state kg 72000
Axle load kg 12000×6
Dynamic parameters
Engine model (on the car)   TAD720VE
Engine rated power kw/(r/min) 162/2100
Engine rated torque N.m/(r/min) 854/1400
Engine model (get off)   OM502LA.E3A/3
Engine rated power kw/(r/min) 442.6/1800
Engine rated torque N.m/(r/min) 2700/1300
Driving parameters
Driving
Max.travel speed km/h 72
Min.stable driving speed km/h 2
Turn
Min.turning diameter m 23
Max.grade % 50(72t)
Min.ground clearance mm 270
Approach angle ° 16
Departure angle ° 18
Braking distance m ≤10
Fuel consumption per hundred kilometers L 83
Main performance parameters
Max.rated total lifting capacity t 220
Min.rated range m 3
Max.lifting moment of basic boom kN·m 6774
Turntable tail radius of gyration mm 5087
Outrigger
Vertical m 8.8
Horizontal m 8.7(6.5)
Max.lifting height
Basic arm m 14.1
Longest main arm m 63.5
Longest main boom + secondary boom m 94.7
Boom length
Basic arm m 13.6
Longest main arm m 64
Longest main boom + secondary boom m 96
Working speed
Max.swing speed r/min 1.9
